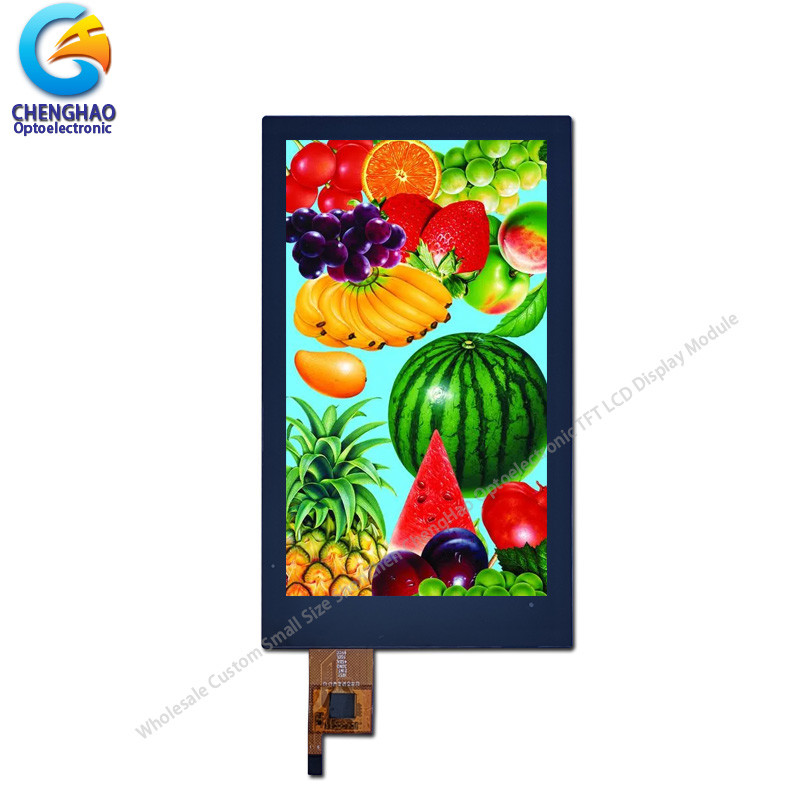

5" Small Touch Screen Display Custom 40pin 480x854 Nits IPS Hd Lcd Monitor With ICN9700 Driver IC
1. Specification
| General Features |
| Diagonal Size | 5.0 inch | Type | 5.0’’TFT + CTP |
| Pixel Format | 480x854 dots | Configuration | RGB Vertical Stripe |
| Active Area | 61.56(W)×109.5255(H) mm | Outline Dim. | 75.1W)×128.9(H)×3.625(T) mm |
| Luminance | 450 cd/m² (Typ.) | Contrast Ratio | 800:1 (Typ.) (TM) |
| View Direction | All | Response Time | // |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Operating Mode | IPS Pro, Normally Black, Transmissive |
2. Description
* CH500FW09A-CT is a Transmissive type color active matrix liquid crystal display (LCD).
* It is composed of a TFT LCD panel, driver IC, FPC, backlight, CTP.
* It is 480(RGB)x854 resolution TFT LCD module.
* Backlight with different brightness options from 200 - 1500cd/m2 are available.
* Specific touch panel can be designed & customized.
* RoHS & REACH compliant.
* If you can't find a suitable one, contact us to get a recommendation.

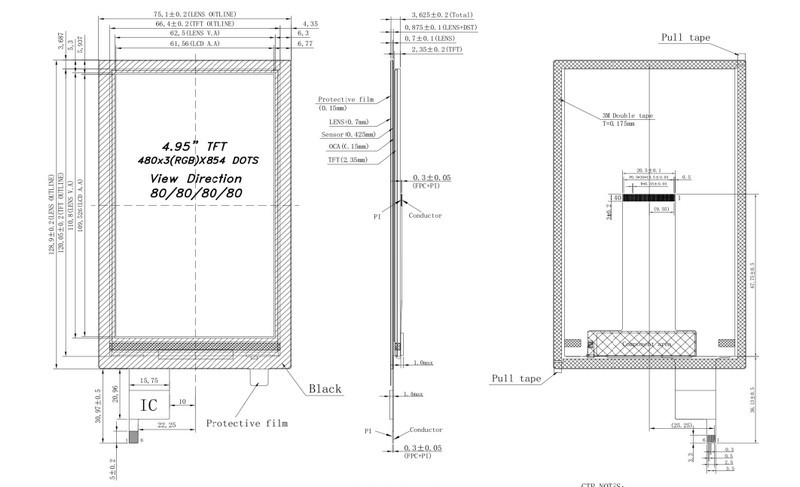

3. Drawings
Notes:
(1) Display Type : 5.0 inch Tft
(2) Viewing Direction : All
(3) Lcd Drive IC : ICN9700
(4) Polarizer Mode : IPS / Transmissive / Normally Black
(5) Operating Temp : -20~70 ℃
(6) Storage Temp : -30~80 ℃
(7) Unmarker Tolerance: ±0.20
(8) Protection : ROHS
4. Application
5. Our Service
(1) Provide best pre-sale and after-sale service to you.
(2) Custom Design,can specially meet your needs.
(3) Fast Delivery ,about 20 days for lead time
(4) Samples available on request; Small MOQ orders can be negotiated.
(5) Fully / Semi-automated production line ensure the best quality.
6. FAQ
Q:Can you provide OEM service?
A:yes, we can provide both OEM and ODM service,can customize products according to the drawings you supply.
Q: How can I trust your product quality?
A:We have more than 10 years experience in touch screen industry. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by ROHS.
Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly by our professional and strong technical team.
Q:What is the minimum order?
A:our company mainly deals with wholesale deals,but if you insist buying one set,welcome to take a sample for you check quality and function.
once sample is confirmed, we could allow for a small mount of orders(no quantity limitation) to be put into production and once this is confirmed, MOQ is required.
Q:How long is the warranty time for your products?
A:Normally 1 year warranty without damaged by people actions like misuse.It depends on different products.
